Poly Effects Josh Smith Flat V

Pedal Only, does not include box

Description

Flat V is a collaboration between Josh Smith and Poly Effects. Flat V is a gain pedal with 2 channels, Channel A is transistor based with selectable diodes. Channel B is amp style gain circuit with cascaded JFETs replacing valves. Synth style resonant filters shape the tone of channel B. All presets have 2 sides that allow you to blend between 2 values of each slider. You can blend with the waveshapes, MIDI or an envelope that reacts to your playing. Blending allows very complex tremolo, envelope filter and auto wah style effects. 100% analog signal path with digital control. Flat V has full MIDI control over all sliders, switches, channel routing, blending and preset control. Requires a 150mA 9V centre negative power supply, not included.

Product Features

• The Poly Effects Flat V is Designed in Collaboration with Modern Blues Maestro Josh Smith
• Channel A is Transistor Based with Selectable Diodes
• Channel B is Amp Style Gain Circuit with Cascaded JFETs Replacing Valves. Synth Style Resonant Filters Shape the Tone of Channel B
• A & B Footswitches Allow You to Switch Each Channel On/Off. Hold to Go Back a Preset
• 'Battery Mode' Reduces How Much Power is Used by Only Showing Values When Your Finger is in Contact with the Pedal
• VU Mode' Swaps Showing the Current Value of Each Control on the Sliders for Showing the Input Level Across the Sliders

Attributes

• Color: Black

Technical Specifications

• Features: Signature Model
• Dimensions: 1.57" H x 4.41" D x 4" W
• Weight: 1.98lbs

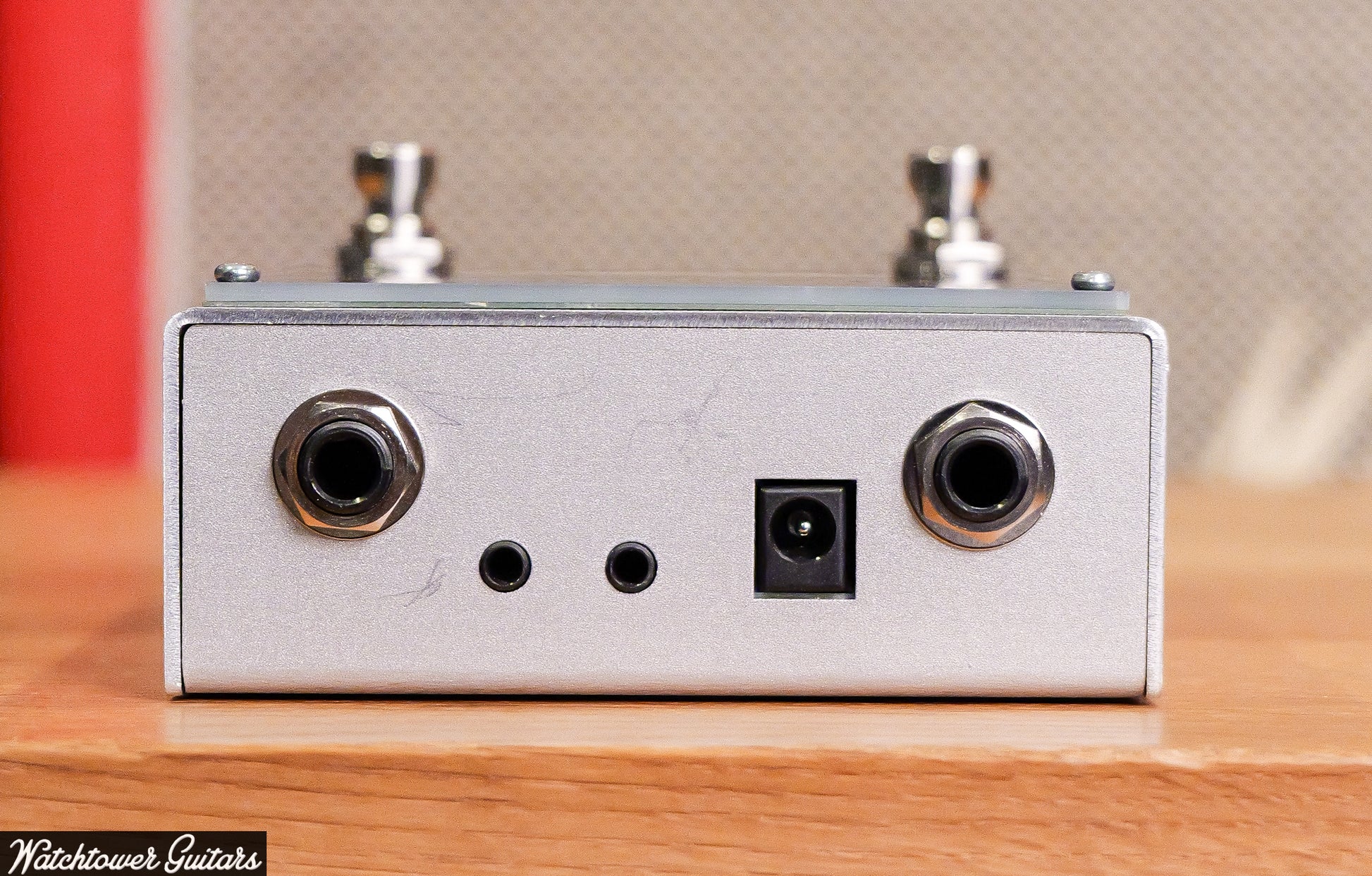

• Inputs: 1 x 1/4" TRS
• Outputs: 1 x 1/4" TRS
• MIDI: In, Out
• Power Source: 9V DC Negative Center Power
• Effects: Overdrive, Distortion, Simulator, Wah, Tremolo, Filter
• Processing Type: Analog
• Presets: 6 Banks of 6 Presets
• Power Usage: 120mA
